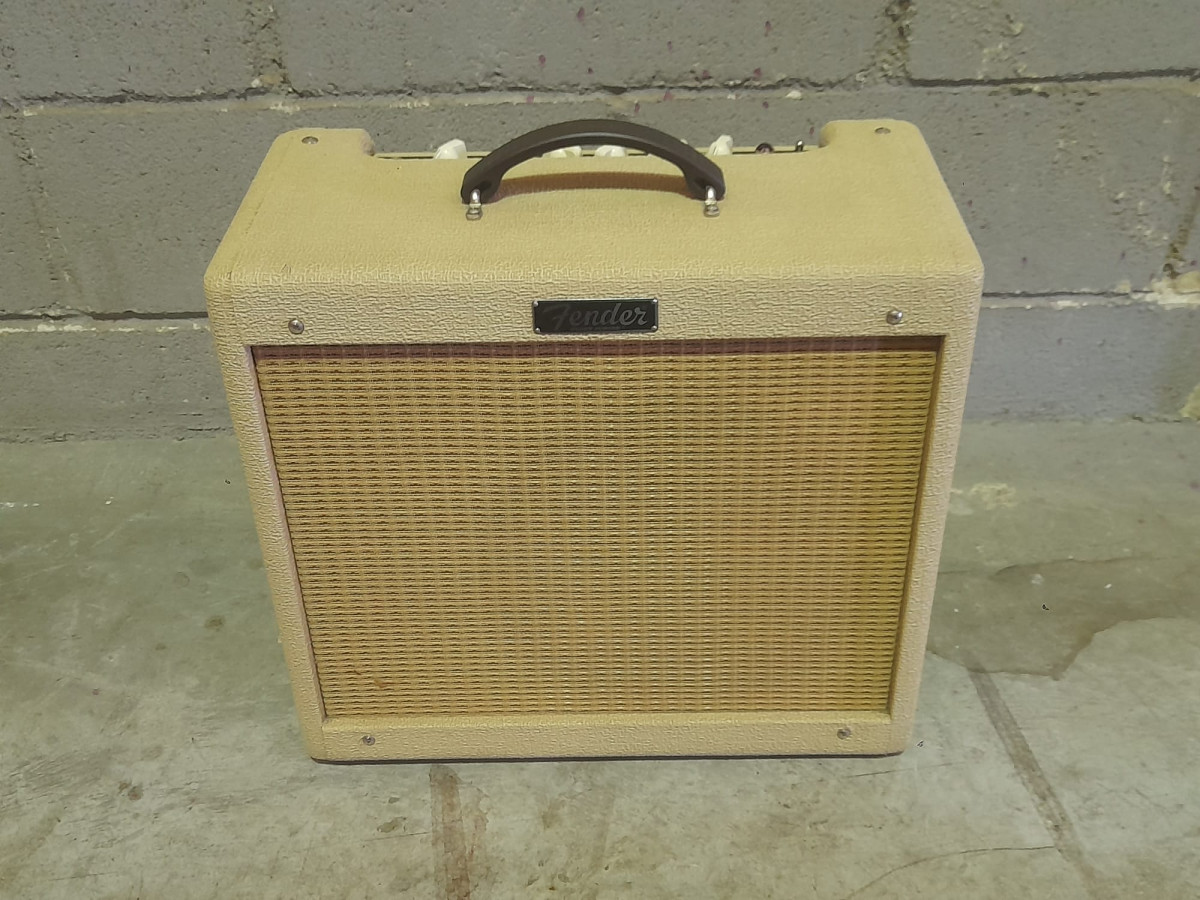

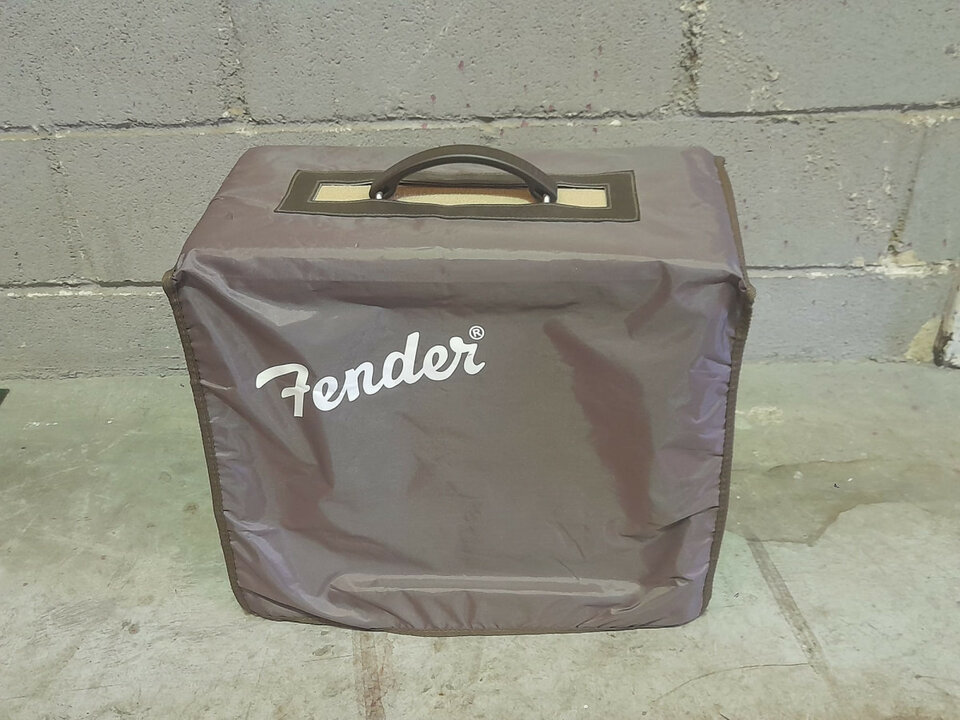

Fender Blues Junior III modificado
lapelvis
A Coruña
el 19/04/2025
Como nuevo y con algunas modificaciones. Altavoz V30
The main filter cap (C25) was replaced by an F&T 47uf/500v cap, AND, piggybacked with another cap of the same value, the three other large caps (C26, C27 &C28) are F&T 22uf/500v caps, a total of eighteen components were replaced, and one (the large filter cap) was added to the circuit.
The two larger radial caps (C30 & C32)) were 470/50, the two smaller radials (C31 & C34) were 220/35, and the smallest (C33) was 100/35, the two caps in the lower right hand corner (C1 & C4) were both 22/35, the C18 cap was replaced by a 47/35, and the cap at C20 was replaced with the "mystery" yellow axial cap .47/100
As for the rest of the mods, the larger Orange Drop went into C6(bass), the smaller one into C7 (middle), the silver mica cap went into C5 (treble). Bias resistor R52 was replaced with a 27k resistor, a jumper was placed between the 2nd & 3rd contact of the mid pot, and the input jack was replaced with a Switchcraft jack, making sure toh have the leads and the jack on the cream side of the board.
The main filter cap (C25) was replaced by an F&T 47uf/500v cap, AND, piggybacked with another cap of the same value, the three other large caps (C26, C27 &C28) are F&T 22uf/500v caps, a total of eighteen components were replaced, and one (the large filter cap) was added to the circuit.
The two larger radial caps (C30 & C32)) were 470/50, the two smaller radials (C31 & C34) were 220/35, and the smallest (C33) was 100/35, the two caps in the lower right hand corner (C1 & C4) were both 22/35, the C18 cap was replaced by a 47/35, and the cap at C20 was replaced with the "mystery" yellow axial cap .47/100
As for the rest of the mods, the larger Orange Drop went into C6(bass), the smaller one into C7 (middle), the silver mica cap went into C5 (treble). Bias resistor R52 was replaced with a 27k resistor, a jumper was placed between the 2nd & 3rd contact of the mid pot, and the input jack was replaced with a Switchcraft jack, making sure toh have the leads and the jack on the cream side of the board.
Características declaradas por el vendedor
Estado: Impecable
